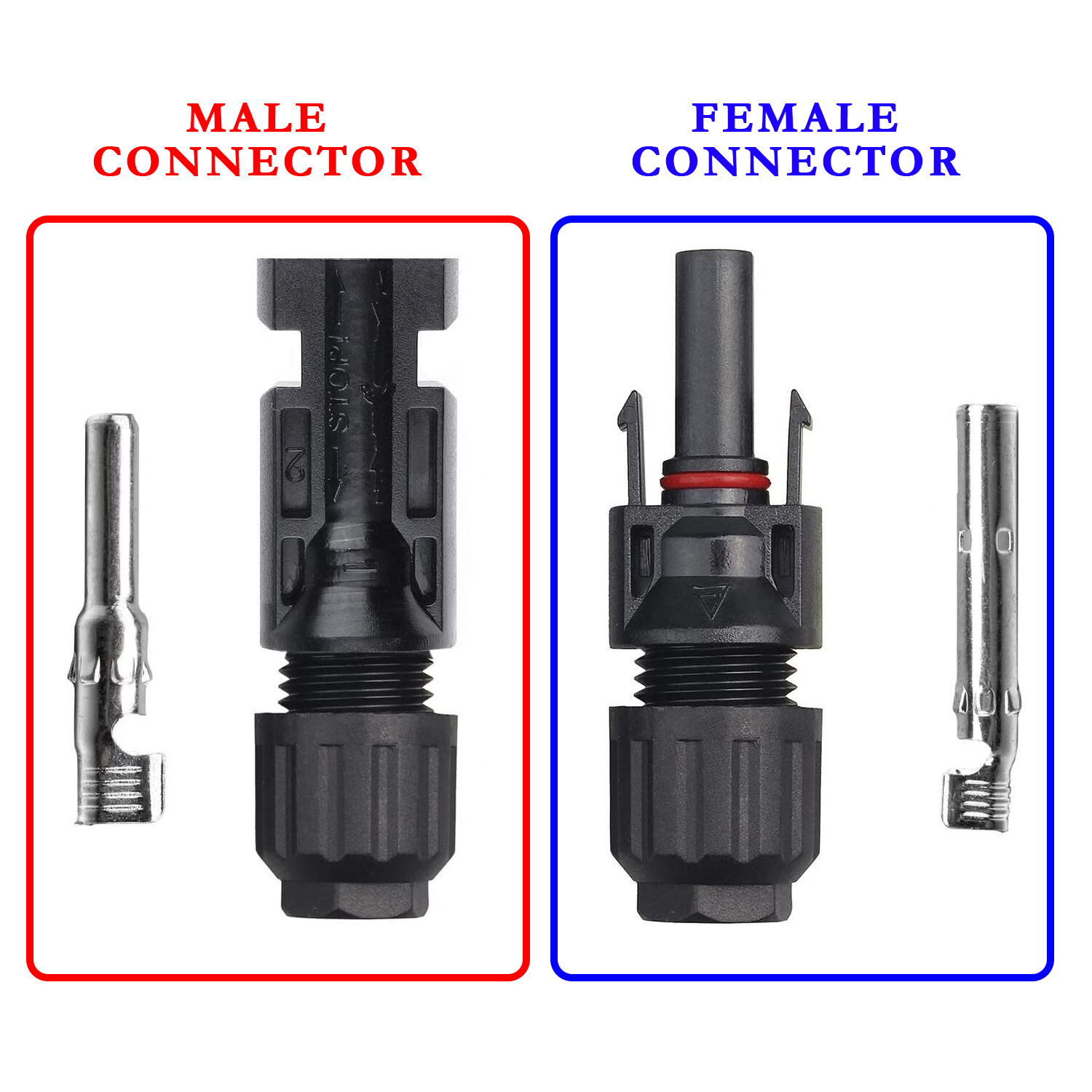

1~300 Pairs Male Female M/F DIY Solar Panel Wire Cable Waterproof Connectors
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Warranty | Life Time Warranty |
| Subtype | Accessories |
| Contact Material | Copper, Sliver plated |
| Flame Class | UL94-VO |
| Bundle Listing | Yes |
| Waterproof Degree | IP67 |
| Type | Solar Panel Adaptors |
| MPN | Does Not Apply |
| Recommended Environment | Outdoor |
| Brand | Stark Industries |
| Application | Back-up Power |
| Resistance Properties | Chemical Resistant |
| Current Rating | 30A |
| Connector Type | MC4 |
| Power Source | Solar |
| Features | Flexible |

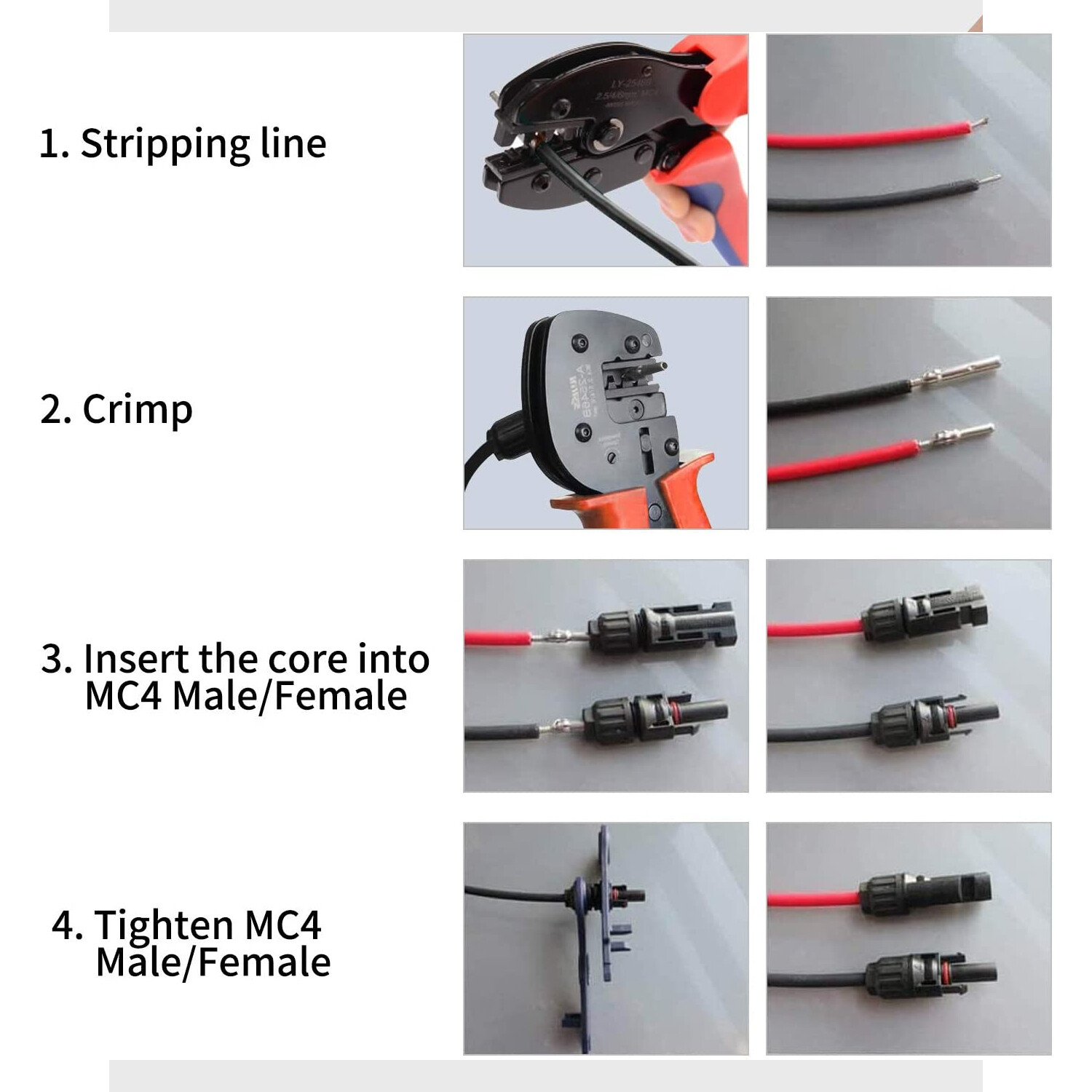

Male Female M/F Wire Cable Connector Set Solar Panel Waterproof 1~100 Pairs Features: Protection Class:2 Rated Current:22(2.5 mm),30A(4,6 mm) Protection Degree: IP2X, unmated;IP67,mated Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument 5 pairs of connectors compatible with MC4 Solar Panel Cable Connectors (5Pcs of Male connectors and 5Pcs of Female connectors) Double seal rings for better waterproof effect Compatible with PV cables with different insulation diameters Resistance of extra high & low temperature and fireproof Load capability with big current and high voltage Details: Protection Class:2 Withstanding Voltage:1000 V DC Rated Current:22(2.5 mm),30A (4,6 mm) Contact Resistance:Less than 0.5 Mohms Specification: Insulation Material:PC/PA, black Temperature Range: -40 C ~ +90 C Contact Material: Copper, Sliver plated Flame Class: UL94-VO or UL94-5VA Rated Current: 30A Suitable cable: 2.5mm2, 4mm2, 6mm2 (AWG14, AWG12, AWG10) Pin dimension: 4.0 mm dia. Contact resistance: ≤0.2mmΩ Waterproof degree: IP67 Flame class: UL94-VO Safety Class: Ⅱ Withdrawal force: ≥50N Insertion force: ≤50N Insulation material: PPO + PA Connecting system: crimping connection Contact material: copper, tin plated Temperature range: -40 ℃ ~ +90 ℃ Protection Degree: IP 2X unmated; IP67, mated Wire Size Range: 2.5mm2, 4mm2, 6mm2[AWG14, AWG12, AWG10] Material Features: Insulation Material: PC/PA, black Contact Material: Copper, Sliver plated Flame Class: UL94-VO or UL94-5VA Package included: We will send you quality what you choose, pls check the item option carefully before you purchase, thanks.
