10 Pair Male Female M/F Wire Cable Connector Solar Panel Adapter 30A Waterproof
USD 8.29 USD
Specifications
| Pulling Out Force | ≥50N |
| Insulation Resistance | ＞ 500M |
| IP Rating | IP67 |
| Ambient Temperature | -40 ℃～ + 105 ℃ |
| Withstand Voltage | DC1000V |
| Rated Current | 30A |
| Flame Retardant Rating | UL94-VO |
| Insertion Force | ≤50N |
| Brand | Unbranded |
| Type | Solar Panel |
| Power Source | Solar |
| Voltage | 1000 V DC |
| Application | Home/Garden |
| Resistance Properties | Waterproof |
| Power | Less Than 100 W |
| Model | Cable Connector |
| Color | Black |
| UPC | 781509269562 |
Product Specifications: Color：Black Insulation Material: PC/PA, black Contact Material: Copper Sliver plated Ambient temperature: -40 ℃～ + 105 ℃ Withstand voltage: DC1000V Flame retardant rating: UL94-VO Rated Current: 30A Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10) Pin dimension: 4.0 mm dia. Contact resistance: <=0.5mΩ Insulation resistance: ＞ 500M Waterproof degree：IP67 Flame class: UL94-VO Safety Class: Ⅱ Withdrawal force: ≥50N Insertion force: ≤50N Insulation material: PPO + PA Connecting system: crimping connection Applicable single-core cable section: 1.5mm2--6mm2 Cable outer diameter range: Φ5mm ～Φ 7mm Package Include: 10 x male solar panel cable connectors 10 x female solar panel cable connectors.
Related Items
2000W Bluetooth MPPT Wind Energy Hybrid System Charge Solar Controller 12/24/48V
15W Solar Panel 12-18V Solar Cell Solar Panel for Phone RV Car MP3 PAD 5876
Long Lasting 8in x 100ft Solar Guard Mesh with Enhanced PVC Finish
10W Solar Panel Charger with USB-C Port for Rechargeable Battery Security Camera
Solar Panel Tilt Bracket Solar Panel Mount Adjustable Flat Roof Mounting Holder

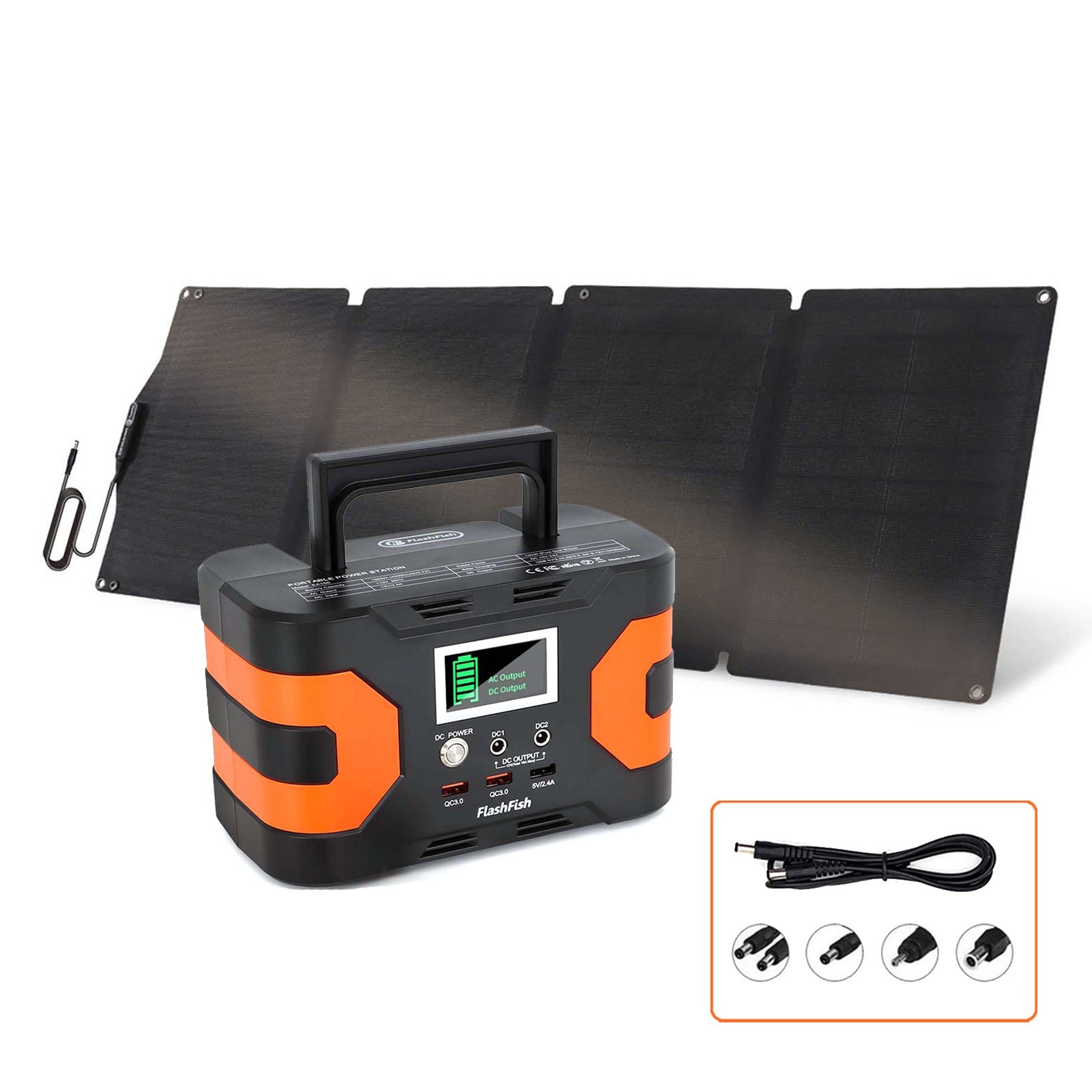

150W Solar Power Generator 166Wh Portable Power Station with 60W Solar Panel
