Renogy 600W 12V Solar Premium Kit W/ 60A MPPT Charge Controller Off-Grid Home
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Pliability | Rigid |
| System Configuration | Off-Grid |
| Solar Technology | Monocrystalline |
| Power Source | Solar |
| Wattage | 600-699 W |
| MPN | RKIT600DPM-RVR60-US |
| Brand | Renogy |
| Type | Solar Panel Kit |
| Voltage | 12 V |
| Model | RKIT600DPM-RVR60-US |
| Recommended Environment | Outdoor |
| Features | All Daylight Conditions |
| Application | Automotive |
| Power | 601-700 W |

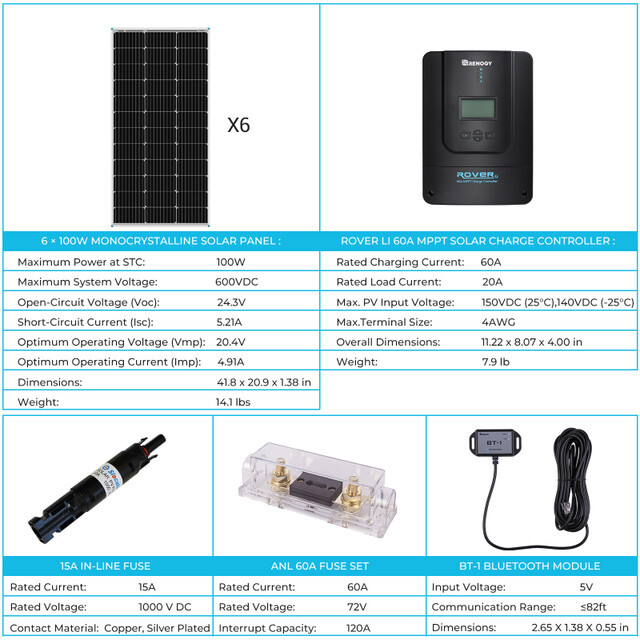

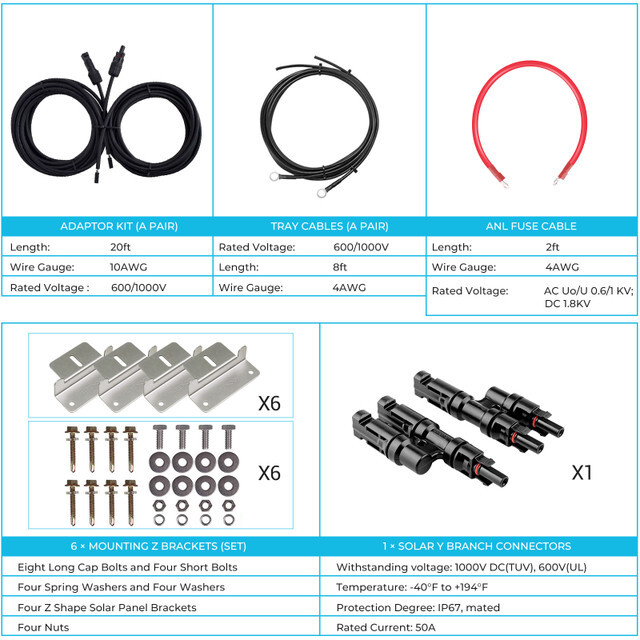

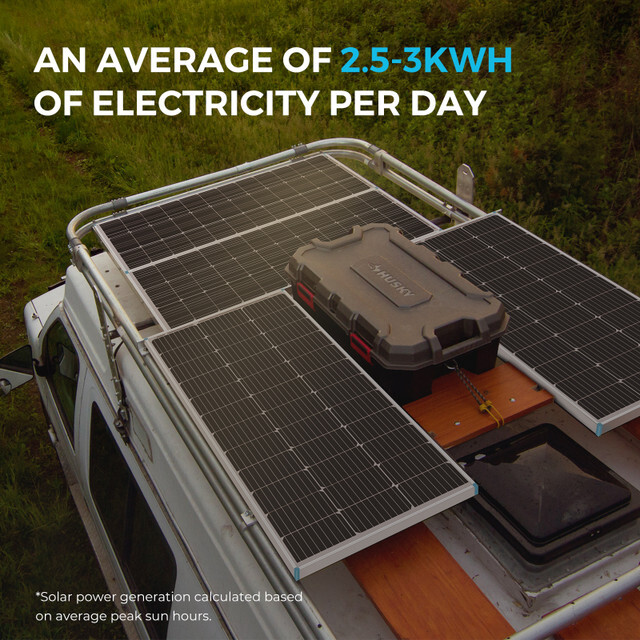

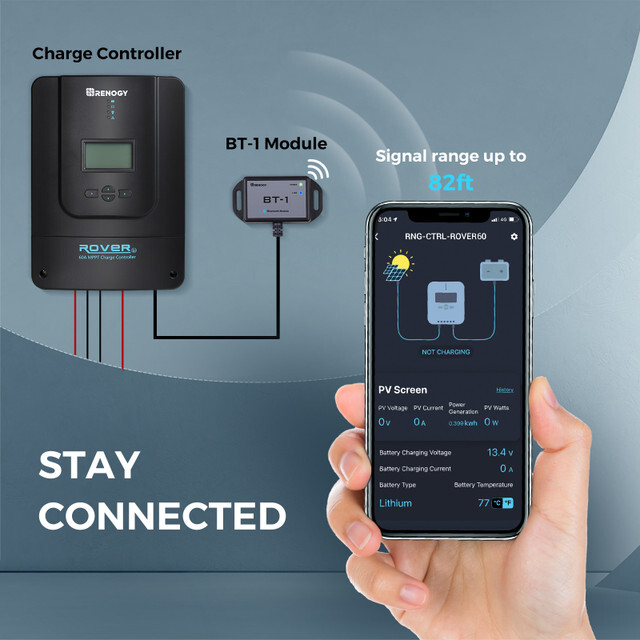

The Renogy 600W 12V/24V Premium Kit is easy for you to install, and it is the most economical choice for the off-grid adventurer. Renogy Solar Kit comes with solar panels, charge controllers, and needed electrical wiring, fuses, and monitoring typically required for an off-grid installation, making it ideal for off-grid and mobile applications.The Premium Kit will produce an average of 2.5-3kWh of electricity per day (Based on 5 hours of direct sunlight conditions). The 6 x 100W solar panels don't take up much roof space, but their energy can offset some medium-size loads such as television, washing machine, electric stove, etc. With the Rover Li 60A MPPT charge controller, the kit can meet your further power needs by adding more of the same solar panels; for example, a 12V system expandable up to 800W solar wattage and a 24V system expandable up to 1600W.The Premium Kit can build a reliable and environmentally friendly power supply, perfect for a yard, barn, RV, boat, or camper. It can also be installed in a ground mount system next to off-grid campsites, as a power supply for outdoor appliances and emergencies, or as a stand-alone power system for water pumps, greenhouses, or other remote structures and machinery.Efficient PerformanceThe bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance. The Module Efficiency can reach 17.8%.With the Rover Li 60A MPPT charge controller, the kit can meet your further power needs by adding more of the same solar panels; for example, a 12V system expandable up to 800W solar wattage and a 24V system expandable up to 1600W.Full System ProtectionThe Rover Li 60A MPPT Charge Controller has built-in protection to safeguard your systems, such as reverse polarity, overcharging, overload, short-circuiting, and reverse current.Auto Detect and Powerful CompatibilityAutomatically detects 12V, 24V, 36V or 48V DC system voltages, and the LCD screen and multiple LED indicators to display the solar charging and battery operation information, customizable parameters, and error codes.Solid QualityAdvanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.No Fear of Weather ChallengeThe IP65 Junction Box protects against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.Ready to InstallThis Renogy Solar Kit includes the equipment necessary for building a new system, such as necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel, allowing fast and secure mounting.Wiring Diagram PACKAGE INCLUDES100W Mono Solar Panel6 xRover Li 60A MPPT Charge Controller1 x20ft 10AWG AK2ft 4AWG Fuse Cable8ft 4AWG Tray Cable1 xMounting Z Brackets (Set) 6 x15A In-line Fuse and 60A ANL Fuse1 xRenogy Solar Y Branch Connectors MMF+FFM Pair1 xBT-1 Bluetooth Module RENOGY 100W MONOCRYSTALLINE SOLAR PANELMaximum Power: 100WMaximum System Voltage: 600V DC (UL)Open-Circuit Voltage (Voc): 24.3VOptimum Operating Voltage (Vmp): 20.4VShort-Circuit Current (Isc): 5.21AOptimum Operating Current (Imp): 4.91ADimensions: 41.8 x 20.9 x1.4 inWeight: 14.1lbs/6.4kg ROVER LI 60A MPPT SOLAR CHARGE CONTROLLERNominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)Rated Charge Current: 60ARated Load Current: 20AMax. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48VCompatible bluetooth: Renogy BT-1 Bluetooth module RENOGY 8FT 4AWG TRAY CABLES (A PAIR)Length: 8ftAWG: 4Rating Voltage: 600/1000VTemperature: -40°F to +185°F RENOGY 2FT 4AWG ANL FUSE CABLELength: 2ftAWG: 4Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KVTemperature: -40°F to +194°F RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)Length: 20ftAWG: 10Rating Voltage: 600/1000VTemperature: -40°F to +185°F RENOGY 15A IN-LINE FUSE HOLDER W/FUSERated Current: 15ARated Voltage: 1000 V DCContact Material: Copper, Silver PlatedReplaceable Fuse: Cylindrical PV Fuse (10x38mm ANL 60A FUSE SETCurrent Rating: 60AVoltage Rating: 72VInterrupt Capacity: 360A (48V)opc: BT-1 BLUETOOTH MODULEInput Voltage: 5VCommunication Range: ≤82ftCompatibel Models: All Renogy Controllers with RJ12 portOperation Temperature: -20°C~85°C (-4°F to 185°F) RENOGY SOLAR SOLAR Y BRANCH CONNECTORS MMF+FFM PAIRWithstanding voltage: 1000V DC(TUV), 600V(UL)Protection Class: Class IIProtection Degree: IP67, matedInsulation Material: PC/PATemperature Range: -40°F to 194°Fopc: MOUNTING Z BRACKETS (SET)Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four WashersFour Z Shape Solar Panel Brackets: Four Nuts WARRANTY INFORMATIONPanels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warrantyAccessories: 1-year material and workmanship warranty
