Waterproof IP66 Solar Disconnect Switch 4-Pole Red DC1500V 32Amp Isolator Sol…
USD 47.87 USD
Specifications
| Switch Type | Rotary |
| Actuator Type | Rotary |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Connector Type | Screw |
| Brand | Zjwzjh |
| Lower Temperature Rating | -40.0 |
| Current Rating | 32.0 |
| Circuit Type | 4-Way |
| Part Number | Eds1-4R-R |
| Terminal Type | Screw |
| Color | Red 4-Pole |
| Controller Type | Rotary Switch |
| Model Number | Eds1-4R-R |
| Operation Mode | On-Off |
| International Protection Rating | Ip66 |
| Material | Plastic |
| Mounting Type | Panel Mount |
| Operating Voltage | 1200.0 |
| Upper Temperature Rating | 85.0 |
| Unit Count | 1.0 |

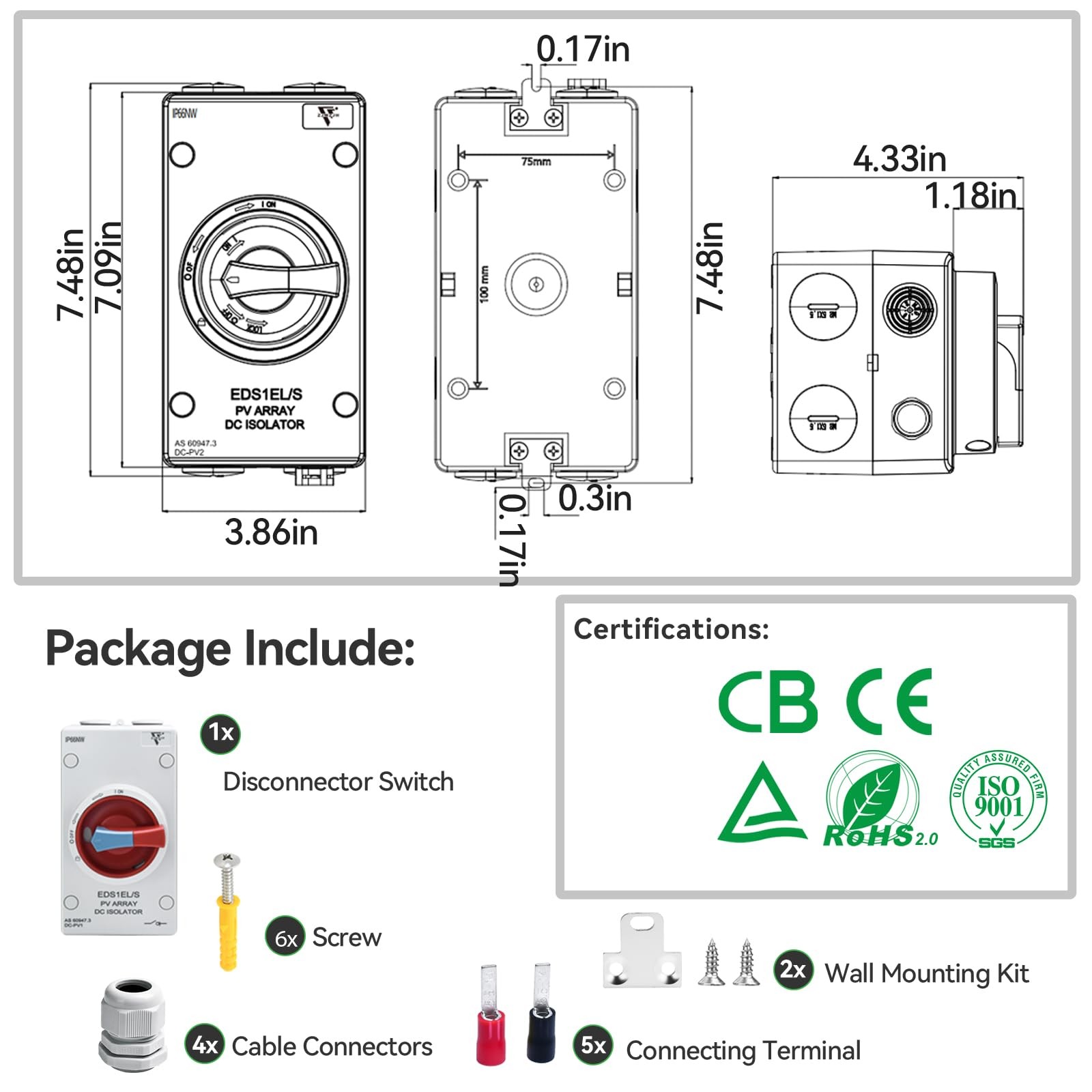

| Package Dimensions LxWxH | 10.67x5.28x4.41 Inches |
| Weight | 2.31 Pounds |

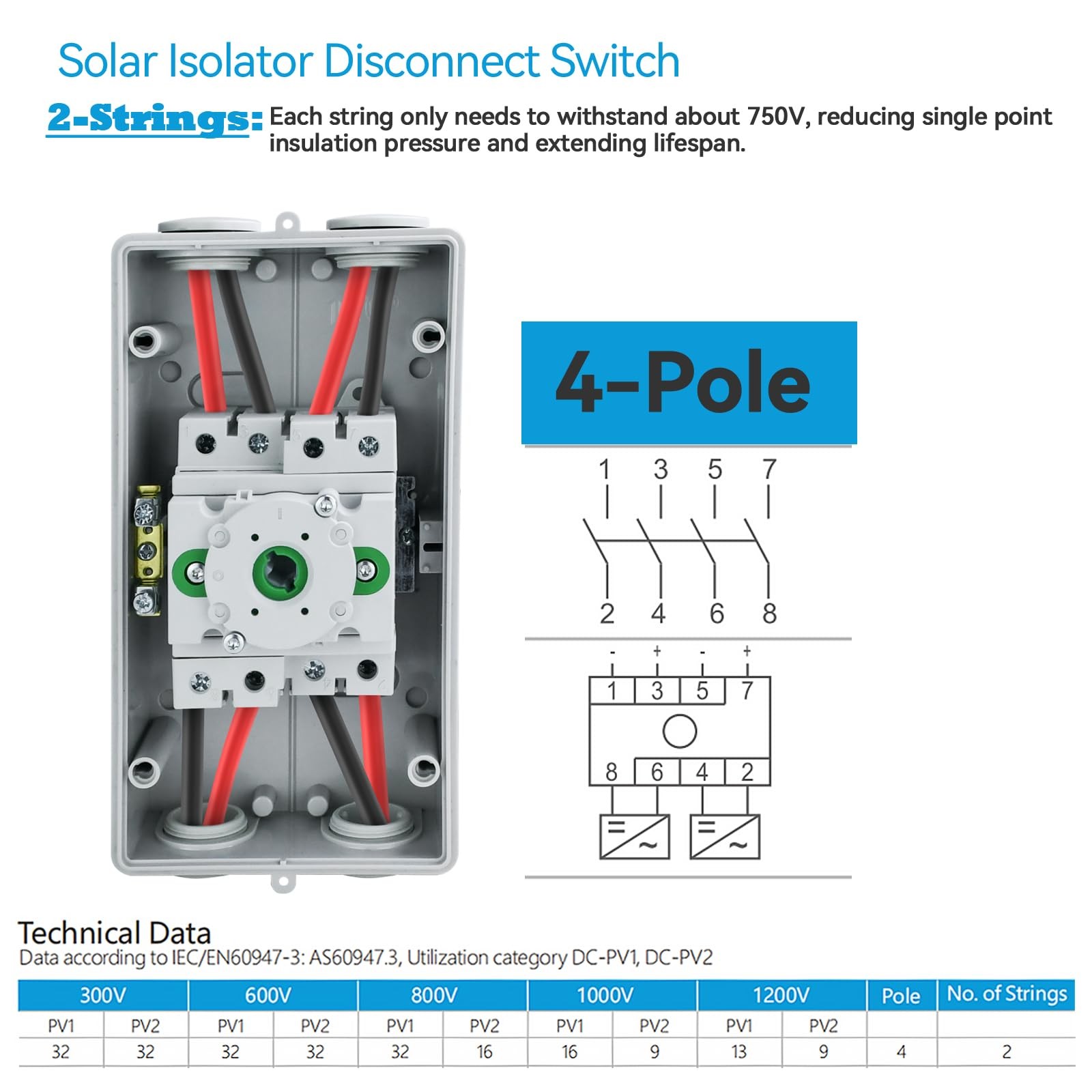

[ Ui: DC1500V ] The DC isolator solar switch is designed to quickly and safely disconnect DC power up to 32A 1500V when installing or maintaining PV systems. Compliant with IEC60947-1&3 standards, it is the first choice for repair, maintenance, inspection and installation.
