Waveshare Polysilicon Solar Panel (18V 10W) 10Wp Power Photovoltaic Panel
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Model | Waveshare Polysilicon |
| Country/Region Of Manufacture | China |
| Type | Solar Panel |
| Brand | Waveshare |
| Part Number | Solar Panel (18V 10W) |
| Voltage | 18 V |

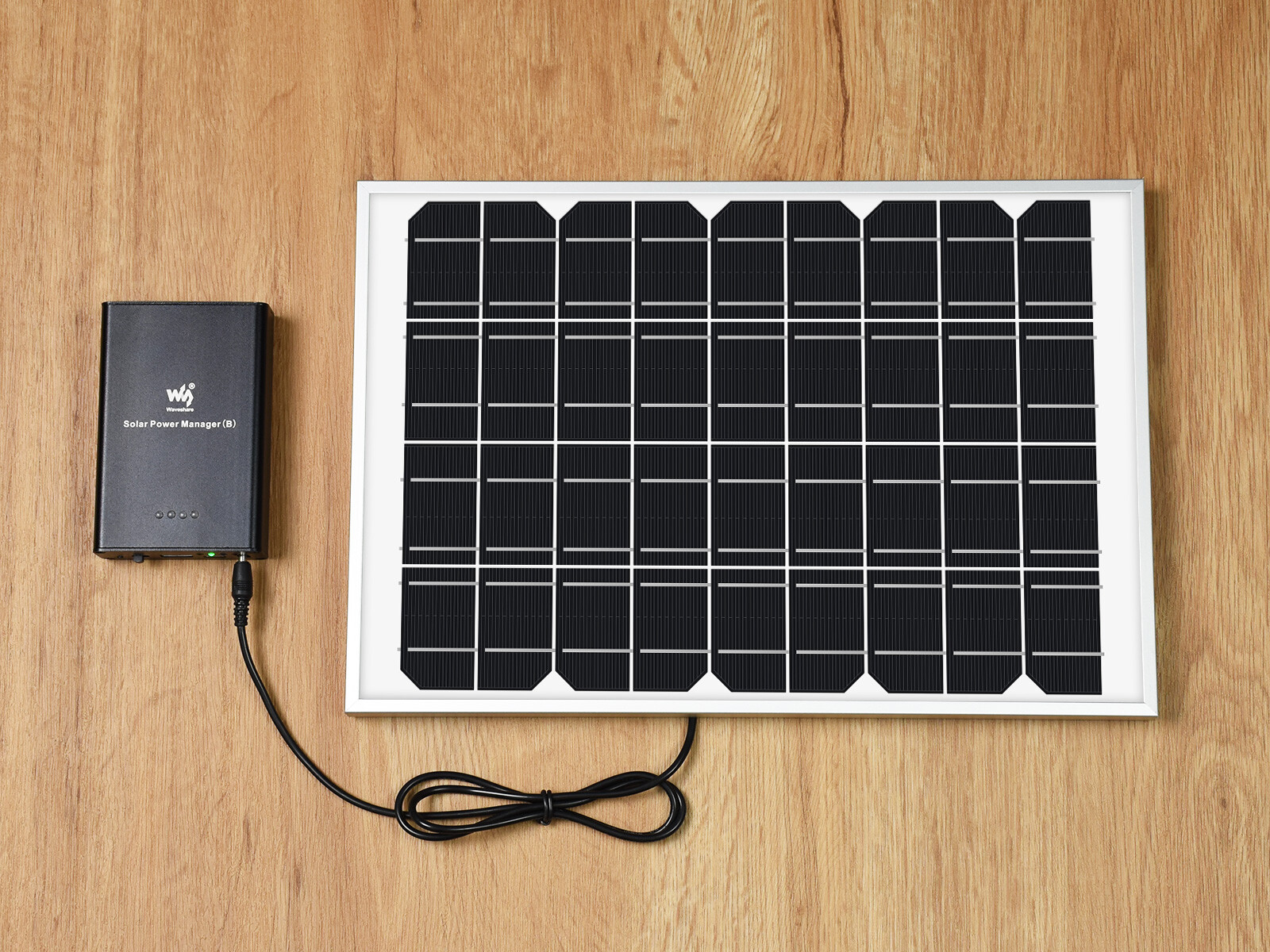

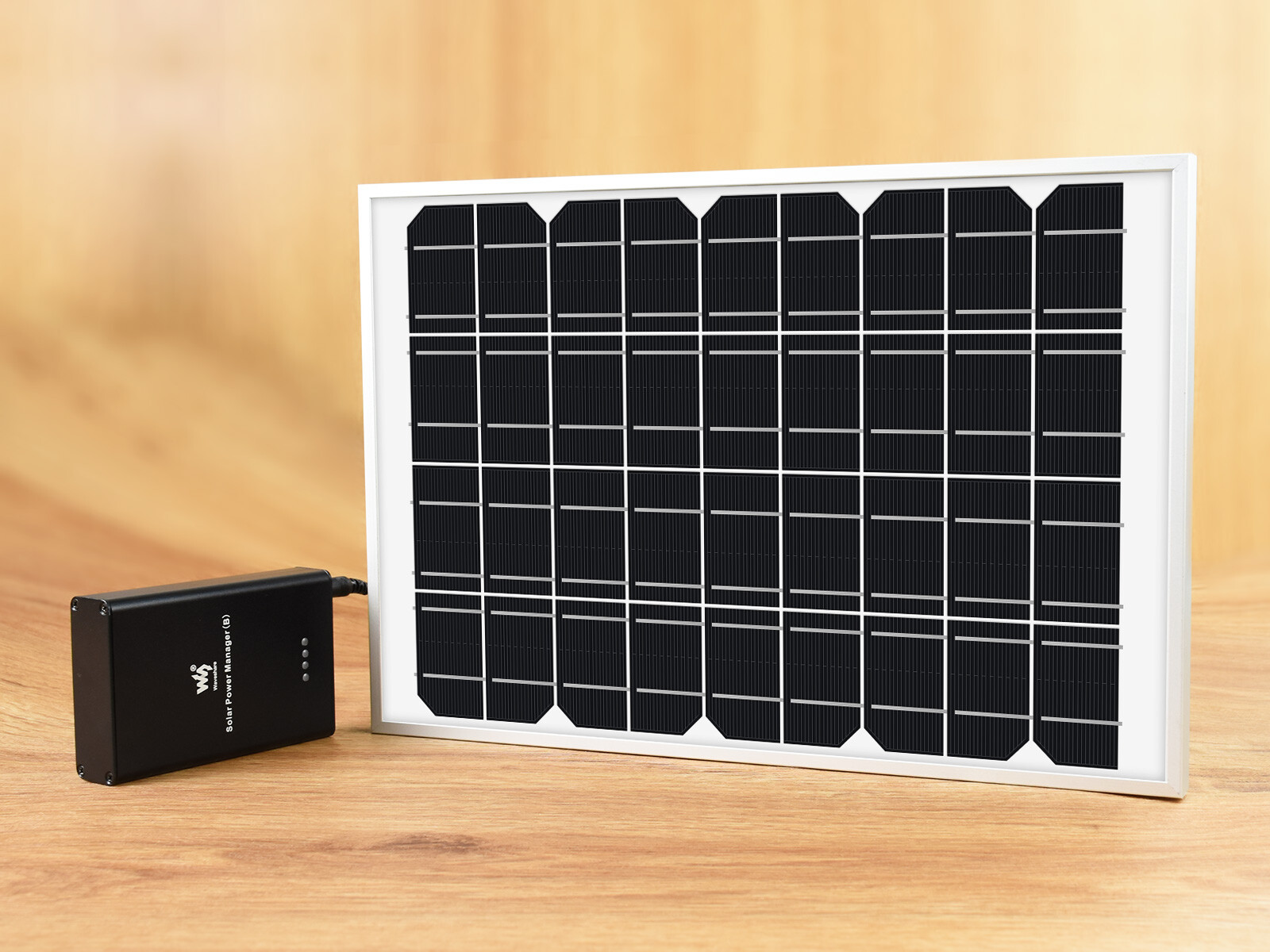

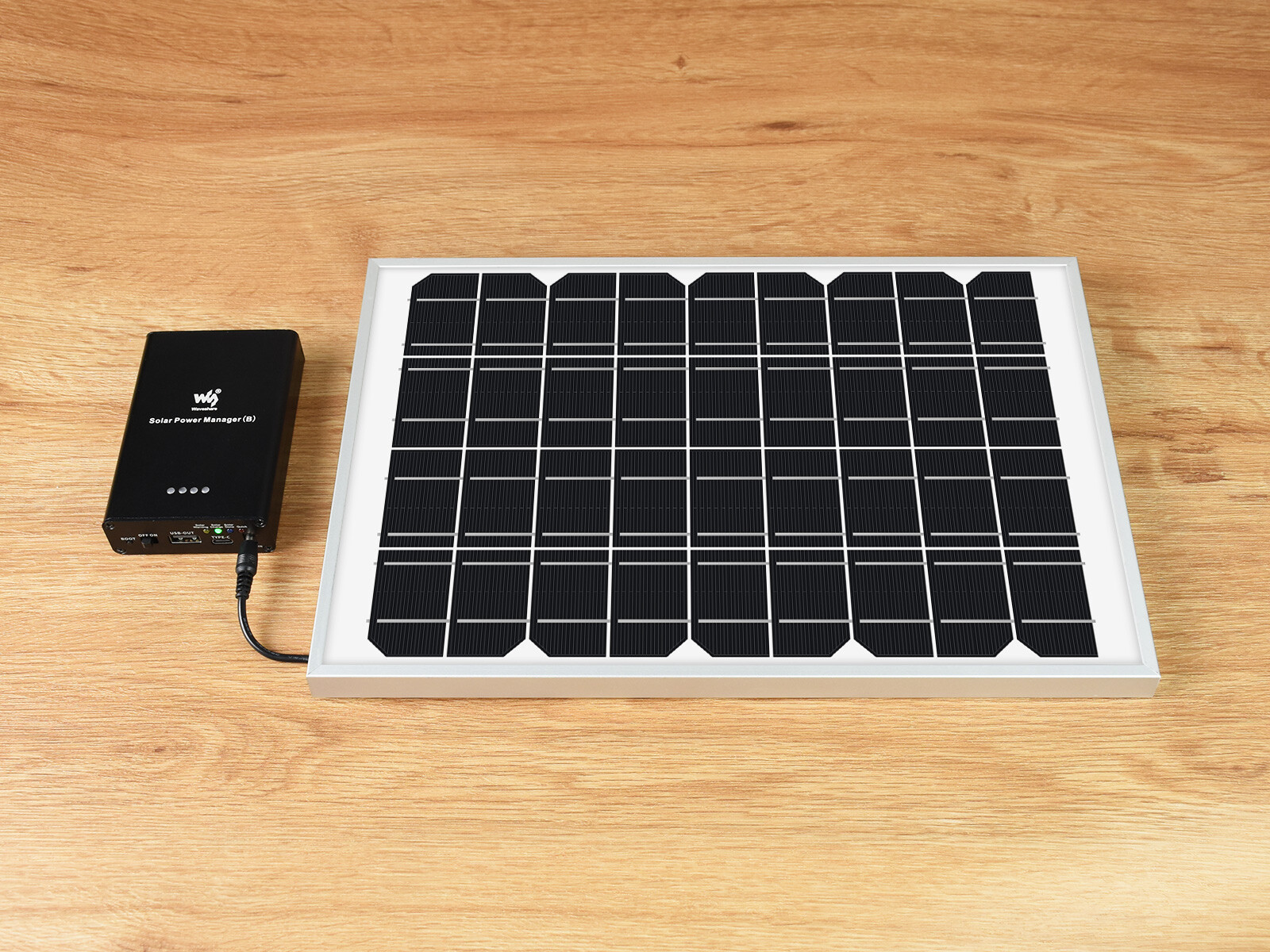

Polysilicon Solar Panel (18V 10W), 10Wp Power Photovoltaic Panel, High Conversion Efficiency SpecificationsKEY SPECIFICATIONSSolar cell typepolysiliconPower10 Wp (Max)Output power tolerance±3%Conversion efficiency>20%Operating voltage17.6 VOperating current0.57 AOpen circuit voltage21.6 VShort circuit current0.61 ACell quantity36 (4×9)Standard system voltage1000 V (Max)OTHERSOperating temperature-40℃ ～ +85℃Pressure on panel30m/s(200kg/sq.m) (Max)Cablelength 90 cm, DC plug, OD 3.5mm ID 1.35mmFrame materialanodic oxidation aluminum alloyDimensions340 × 232 × 17 mmWeight0.935 kgConversion Efficiency > 20%Polysilicon Solar Panel, Widened Chips, Larger Receiving Area, Capturing Trivial SourceHigh Strength FrameAnodic Oxidation Aluminum Alloy Material, Multi Layers Structure, Waterproof And DurableApplication Example for reference ONLY, the Raspberry Pi, display, solar power manager are NOT included.Outline Dimensions* measured manually, for reference ONLYPACKAGE CONTENTWeight: 0.935 kgSolar Panel (18V 10W) x11
